The containers can be constructed in various ways: mesh containers for storing profiles and long materials in general, sheet metal containers for protecting materials, or closed-bottom boxes for storing scraps, spare parts, or accessory boxes. The drawers are sized and installed in the machine by our technical department based on the end customer's requirements. BI.MAG automated warehouses offer customized solutions for storing long materials such as pipes, profiles, and bars, as well as automated warehouse solutions for pallets, molds, semi-finished products, heavy accessories, hydraulic and mechanical components.

Magazzino automatico Componenti meccaniche

Ciampalini also builds outdoor warehouses, maximizing the use of available space, reaching heights of over 20 meters. An outdoor warehouse also allows for optimal space optimization and minimizes the amount of material clutter within the workplace. Our company can provide turnkey self-supporting structures complete with insulated panels.

Slide title

Write your caption here

Button

Contacts Contacts

Slide title

Write your caption here

Button

The solution for storing long materials

Slide title

Write your caption here

Button

Slide title

Write your caption here

Button

The solution for storing long materials

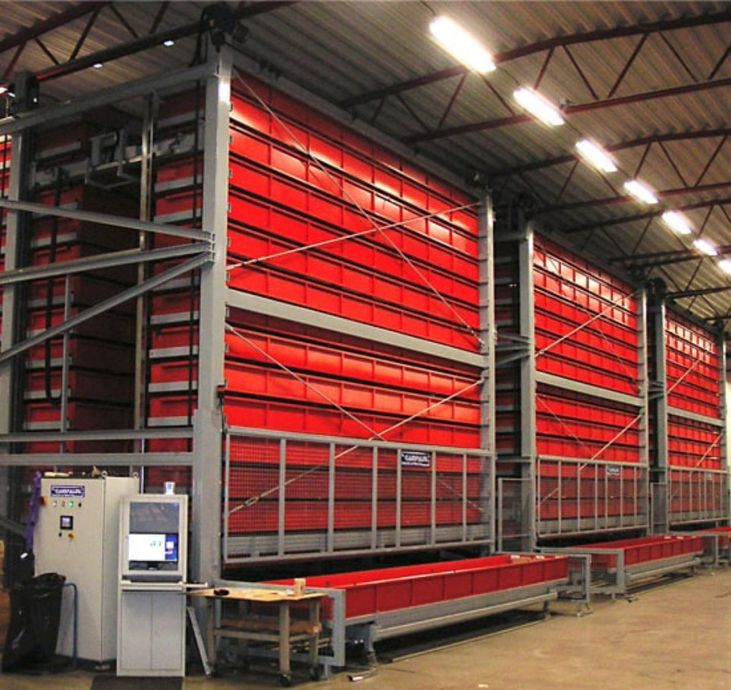

BI.MAG automatic drawer warehouses are the ideal system for vertically storing steel bars and sections in lengths of 3 m, 6 m, and 12 m, heavy accessories, semi-finished products, components, molds, and long materials in general. The load capacity per unit ranges from a minimum of 5,000 kg to a maximum of 6,000 kg. BI.MAG warehouses are a practical and economical solution, suitable for both production and commercial distribution. They are often installed next to a cutting machine to deliver the material directly to the working position. BI.MAG warehouses can be customized to meet any specific storage and handling needs for bars and long materials.
